Wagner Tuning Audi A4/A5 2.0 B8 TFSI Competition Intercooler Kit
Description:THIS ITEM CAN ONLY BE USED IN A COMPETITION RACING VEHICLE THAT IS NOT DRIVEN ON PUBLIC ROADS, UNDER CALIFORNIA STATE LAW IT IS NOT LEGAL FOR USE IN ANY OTHER MOTOR VEHICLE!
This competition intercooler has the following core size (610mm x 440mm x 65mm= 17,446L / 24Inch x 17,3Inch x 2,56Inch = 1064,62Inch³), providing 178% more frontal area and 158% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improving the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. Despite of it´s size the weight of the complete intercooler is only 9,1kg.
Constructed of the highest quality TUBE and FIN intercooler cores with inside turbulators combined with cast aluminum end tanks optimized by CFD for best possible internal airflow.
The inlets and outlets of the intercooler have been increased to Ø 67mm (2,64Inch), so this kit comes with reinforced silicone hoses. This intercooler is the best choice when it comes to performance gains and low intake temperatures. A lot less pressure drop then OEM intercooler.
Anti Corrosion protective Coating with perfect thermal heat dissapating character.
Optimal cooling with clearly more power. Kit is ready for installation, 100% perfect fit. Fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control.
The Competition Intercooler Kit fits to the following cars:
Audi A4 B8 1,8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CABD, CDHB)*
Audi A4 B8 2,0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
Audi A4 B8 Allroad 2,0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
Audi A5 B8 1,8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CABD, CDHB)*
Audi A5 B8 2,0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
Audi A5 B8 Sportback 1,8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CDHB)*
Audi A5 B8 Sportback 2,0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
* not for B8.5 facelift models
* didn´t fit directly to vehicles with an additional cooler for the dynamic-steering. Recommendation on the implementation you will find in the installation instruction.

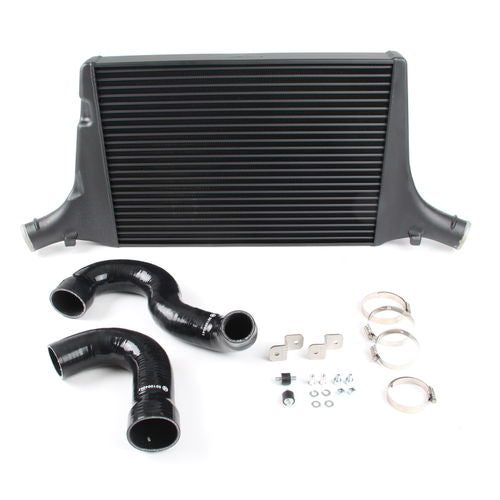

kit comes with:
1 charge air cooler
2 silicone hoses
4 hose clamps
1 mounting material
1 installation instruction
