Description:
KW Coilovers Variant 5
Ultra high performance technology (KW Solid Piston Technology) bred from GT3 motorsports. KW 4-way independently adjustable damper technology.
By launching the new KW Variant 5 coilover suspension, KW focuses on its successful motorsport suspension technology with KW Solid Piston Technology and modular design with damper valves connected in series. The KW Variant 5 assures precise and fast damping without delay in sports cars and super sports cars. The shock absorbers and valves react directly, even with small spring travel, minimal steering movements, and minor road undulations. Every driving maneuver and every input, such as those generated during braking, acceleration, steering, load changes, and undulations, are damped much more precisely. The KW Solid Piston dampers provide much more platform support to the chassis than conventional dampers and thus, depending on the vehicle body allow for lower spring rates to be used.
Setup - factory pre-configured damping setup with separate 4-way damper setting
By launching the new KW Variant 5 coilover suspension, KW focuses on its successful motorsport suspension technology with KW Solid Piston Technology and modular design with damper valves connected in series.
Thus, the KW Variant 5 with adjustable KW SPCLH-A (KW Solid Piston Compression Low- and Highspeed Adjustable) compression damping and the KW SPRLH-A (KW Solid Piston Rebound Low- and Highspeed Adjustable) rebound damping offers significant added values: more sensitive damping, cavitation-free function, precise high-frequency damping, low-pressure gas range from 6 to 10 bar and low hysteresis.
The low- and high-speed valve units in the KW Variant 5 coilover suspension, which are built-in series with different valve spring types and main valves, offer the freedom to individually adjust the compression and rebound damping with 13 exact clicks (14 characteristic curves) each in the low- and high-speed range. The KW Solid Piston Technology can also be used to cover a large force range when designing the characteristic curves; all the more reason to enable a completely new type of harmonious damping.
Continuous lowering
The KW Variant 5 allows a maximum or individual lowering within the tested adjustment range. Due to the dirt-resistant trapezoidal thread and the polyamide threaded ring, the continuous lowering can be varied quickly and easily, even after the years.
The Benchmark for Coilovers
KW Variant 1 "inox-line" coilover rewards the sporty driver with its harmonious pre-configured setup. For each vehicle our engineers develop a specific damper setup and spring rate to increase the driving pleasure with an optimal balance of sportiness and practicality. As with all KW coilovers, the engineers at KW develop the vehicle-specific KW damper tuning and spring rates with comprehensive testing on the Nürburgring Nordschleife and in the KW 7-post chassis dynamics test center.
After all, you do not buy just any coilover kit, but a KW coilover kit that has been especially developed and adapted for your vehicle type. KW as manufacturer exclusively uses own resources, high-quality components and the same damper technology as high-volume manufacturers. With the KW coilover suspension Variant 4 “inox-line”, the roll and pitch movements of the vehicle body are reduced during compression, so you benefit from an unadulterated directness and sportier handling while driving.
Our experience means your driving pleasure
For over 20 years, KW automotive has been the market leader and driving innovation as a manufacturer of individual suspension solutions for the road and in all types of motorsports. No matter where in the world, gearheads, automobile manufacturers and reputable tuners rely on our KW coilovers "Made in Germany".
Every KW coilover kit undergoes extensive stress testing before production and is developed and manufactured exclusively in our company headquarters in Fichtenberg, a small in town in Germany, to meet the high standards of our KW quality management. For us as a German manufacturer, it goes without saying that our KW coilover kits will exceed the original equipment manufacturer quality, and offer useful and innovative solutions. With an application list comprising more than 4,600 options KW guarantees an outstanding selection backed by our Limited Lifetime Warranty.

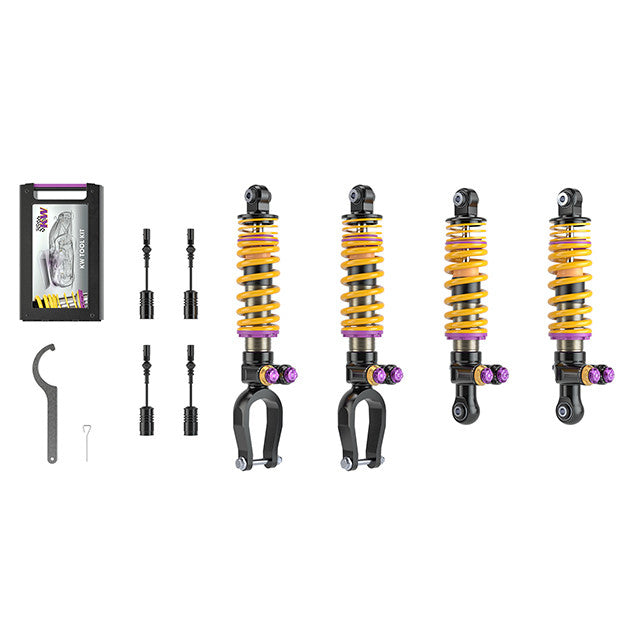

KW Coilover Kit V5 2014+ Lamborghini Huracan (Incl Spyder) w/ NoseLift / w/o Elec. Dampers
Special order product(s), please allow an additional 10-15 days delivery. For more detailed information please contact HKP Tuning
