Description:

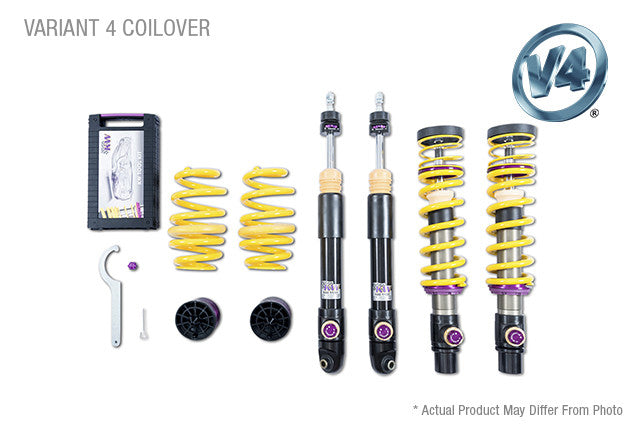

The KW Variant 4 was developed exclusively for supercars, sports cars and performance oriented sedans. With coilover struts made from stainless steel or aluminum, depending on the vehicle design, you give your super-sports car the necessary equipment to further increase the driving dynamics in everyday life. The triple-adjustable high-performance dampers combine leading race technology to allow the independent adjustment of the rebound and the low-speed and high-speed compression damping.
| Front Lowering: | 0.8" to 1.4" |
| Rear Lowering: | 0.8" to 142" |
KW Variant 4 coilovers are a combination of our innovative, race proven technology, as well as decades of experience tuning high end sports cars, super sedans and exotics such as the Audi R8, Audi RS6, BMW M5, Lamborghini Aventador LP 750-4 SV, Dodge Charger SRT Hellcat, Mercedes AMG GT and more. In addition to the individually adjustable ride height the KW Variant 4 coilover kit allows an independent adjustment of the rebound damping as well as the low-speed and high-speed compression damping. Each KW Variant 4 coilover kit is delivered with a vehicle-specific comfort setting and with the integrated adjustment controls the damping characteristics can be set quickly and intuitively transformed to an optimized performance setup.
SPECIFICALLY ENGINEERED SETUP – VEHICLE SPECIFIC WITH INDEPENDENTLEY ADJUSTABLE REBOUND, HIGH AND LOW SPEED COMPRESSION.
The 3-way adjustable high-performance dampers in the KW Variant 4 coilover kits feature independent adjustment of the rebound damping utilizing patented TVR-A technology, as well as the low speed and high speed compression damping utilizing TVCLH-A technology. The KW Variant 4 coilovers are based upon successful race technology utilized by multiple overall winners of the ADAC Zurich 24h Nürburgring race.The new KW Variant 4 coilovers are exclusively developed for select high-performance vehicles, which benefit greatly from the KW suspension technology to improve their driving dynamics.
TVR-A Technology:
The two-stage, patented TVR-A (Twin Valve Rebound - Adjustable) technology enables a small volume of oil to flow through an adjustable, conically shaped, low-speed bypass during low damper speeds, while in the case of higher damper speeds, the main rebound stage valve opens allowing a larger volumn of oil to flow. This provides a big improvement in terms of ride comfort without influencing the safety-relevant high-speed range. There are 16 precise clicks available for individual settings, so you can choose between more comfort or more body control.
TVCLH-A Technology:
With 6 precise clicks in low-speed and 14 precise clicks in high-speed range of the compression damping, the cross-sections in the Variant 4 valves are decreased or increased, in order to achieve either more or less compression damping. The TVCLH-A (Twin Valve Compression Low High - Adjustable) technology has an engineered blow-off characteristic providing a large cross-section that allows substantial low-speed forces to provice optimum support of the vehicle body without unsettling the body in the case of sudded high damper stimulation induced by the wheels, like driving over apex curbing. The separate low and high-speed settings are always supplied with an additional rebound setting utilizing TVR-A technology for a truely independent 3-way damper setup.
CONTINUOUS RIDE HEIGHT ADJUSTMENT
With KW Variant 4 coilovers you can achieve maximum lowering within an approved lowering range that ensures a proper functioning suspension with adequate travel after your car is lowered. Even after years of use you can easily adjust the ride height thanks to the dirt resistant trapezoid thread and composite adjustment collar.
THE BENCHMARK FOR COILOVERS
As with all KW coilovers our engineers develop vehicle specific damper and spring specifications which undergo comprehensive testing on the Nürburgring Nordschleife and in our KW 7-post Driving Dynamic Test Center. With a KW Variant 4 coilover kit the driving experience is more dynamic and direct.
You are not buying a mass produced, generic coilover kit, a KW coilover has been developed specifically for your particular vehicle. As a manufacturer, KW uses only its own resources, high quality components and the damper technology that has all developed in-house. With the KW Variant 4 coilovers, rolling motion of the body will be reduced during compression giving you the benefit of more direct handling and confidence while driving.
OUR EXPERIENCE MEANS YOUR DRIVING PLEASURE
For over 20 years, KW automotive has been the market leader and driving innovation as a manufacturer of individual suspension solutions for the road and in all types of motorsports. No matter where in the world, gearheads, automobile manufacturers and reputable tuners rely on our KW coilovers "Made in Germany".
Every KW coilover kit undergoes extensive stress testing before production and is developed and manufactured exclusively in our company headquarters in Fichtenberg, a small in town in Germany, to meet the high standards of our KW quality management. For us as a German manufacturer, it goes without saying that our KW coilover kits will exceed the original equipment manufacturer quality, and offer useful and innovative solutions. With an application list comprising more than 4,600 options KW guarantees an outstanding selection backed by our Limited Lifetime Warranty.
Notes:
NOTES
- 1: Height adjustable on the front and rear axles (threaded strut housings)
- 411: Variant 4 struts / dampers made of aluminum or kit is a combination of aluminum and stainless steel per axle.
- 67: Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.
- 88: Electronic dampening control has to be deactivated. Deactivation kit is included.
Special order product(s), please allow an additional 10-15 days delivery. For more detailed information please contact HKP Tuning
