KW DDC ECU

Retrofit electronic damper control with adjustable ride height

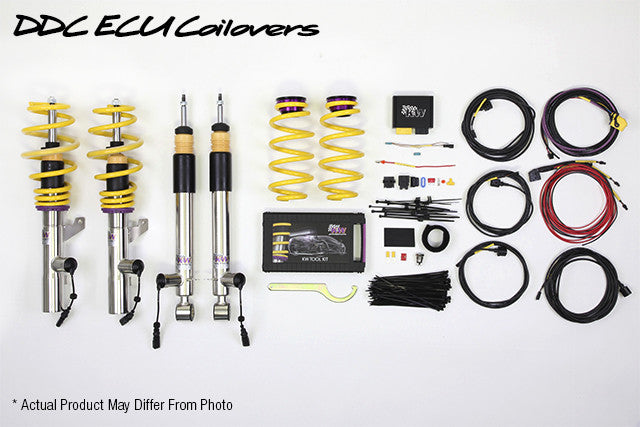

Experience the innovation and quality of high-end engineering: the KW DDC (Dynamic Damping Control) ECU (Electronic Control Unit) coilover suspension, made in Germany. For the first time with its electronically adjustable dampers, the KW DDC ECU coilover system combines intelligent, app-controlled suspension tuning with ride height adjustability. This gives you the opportunity to upgrade your vehicle with an adaptive damper systen and electronically control the level of performance or comfort that meets your requirements Included in the package is a KW “inox-line” coilover suspension with high-quality stainless steel struts, electronically adjustable dampers, a high-performance control unit with a vehicle-specific set of cables, a KW DDC control button giving you control from the comfort of the drivers seat, and an elaborate assembly instructions for an easy installation.

SETUP – THREE FACTORY-PRE-CONFIGURED DAMPING SETTINGS FOR ADAPTIVE DAMPER CONTROL AND OPTIONAL APP-CONTROL VIA SMARTPHONE

The KW DDC ECU coilover suspension features three vehicle-specific damper setups. At the touch of a button you can choose between the basic Sport setting, a very sporty and performance-oriented Sport+ setup or Comfort mode.

INDIVIDUALITY AT THE PUSH OF A BUTTON.

The KW DDC button - One Button, Three Times the Experience!

The included KW DDC button allows switching between the three damper settings, Comfort, Sport, and Sport +. The KW DDC button changes the color confirming the dampers have changed.

With the KW DDC button, the respective driving mode, Comfort, Sport, or Sport+ can be selected changing the adaptive KW DDC ECU coilover kit damper setting within milliseconds. In Sport+ mode, the adaptive KW dampers give every car an unadulterated driving behavior. A setup which is ideal for demanding rides on twisty roads with lots of load changes. The Sport mode however, is perfect for driving on the highway with long curves, while the Comfort mode is the ideal for traveling on poorly developed roads. In Comfort mode, the suspension adjusts automatically to the respective driving situation.

KW DDC APP: THE APP FOR AN ADAPTIVE DRIVING EXPERIENCE

If you add the additional DDC WLAN module to the KW DDC ECU kit the adaptive dampers of the KW DDC ECU coilover suspension can be adjusted independenly per axle to your personal driving style and conditions. The App is compatible with smartphones and tablets from Apple (iOS) and many Android devices. can be set intuitively from the maximum comfort setting with a very soft damping (shown in the app as 0%) up to the Sport+ damper setting (shown in the app as 100%). Here, you can also select between the 3 preset modes and the KW DDC button in the car will change to the corresponding color to confirm the setting.

BASIC MENU

Choice between the KW damping modes, Comfort, Sport, and Sport +. The two Sport modes can also be assigned with individual settings via the Advanced menu.

ADVANCED MENU

Display and edit the current damper force in real time. With infinitely variable damper setting you can custom tailor the front and rear axles instantaneously. Once you have selected the individual setup on the front and rear axels it is made active by clicking the Transmit button and saved in the KW DDC ECU. With the activation of the Permanent Update feature, the changes are transferred to the ECU and dampers in real time.

PERSONAL MENU

Up to five individual damper setups can be stored in the App, saved, renamed and retrieved at any time as well as on request being shared by E-mail.

SETTINGS MENU

Under the "Settings" menu you can configure the connection settings, choose from different app background designs, and choose whether to show or de-activate the startup logo.

As with all KW coilovers our engineers develop vehicle specific damper and spring specifications which undergo comprehensive testing on the Nürburgring Nordschleife and in our KW 7-post Driving Dynamic Test Center. With a KW DDC coilover kit the driving experience is more dynamic and direct.

You are not buying a mass produced, generic coilover kit, a KW coilover has been developed specifically for your particular vehicle. As a manufacturer, KW uses only its own resources, high quality components and the damper technology that has all developed in-house. With the KW DDC coilovers, rolling motion of the body will be reduced during compression giving you the benefit of more direct handling and confidence while driving.

OUR EXPERIENCE MEANS YOUR DRIVING PLEASURE

For over 20 years, KW automotive has been the market leader and driving innovation as a manufacturer of individual suspension solutions for the road and in all types of motorsports. No matter where in the world, gearheads, automobile manufacturers and reputable tuners rely on our KW coilovers "Made in Germany".

Every KW coilover kit undergoes extensive stress testing before production and is developed and manufactured exclusively in our company headquarters in Fichtenberg, a small in town in Germany, to meet the high standards of our KW quality management. For us as a German manufacturer, it goes without saying that our KW coilover kits will exceed the original equipment manufacturer quality, and offer useful and innovative solutions. With an application list comprising more than 4,600 options KW guarantees an outstanding selection backed by our Limited Lifetime Warranty.

KW Coilover Kit DDC ECU 17+ Audi RS3 (8V)

Special order product(s), please allow an additional 10-15 days delivery. For more detailed information please contact HKP Tuning

This fits:

Year	Make	Model/Submodel	Engine	Details
2017	Audi	RS3 Base	2.5l L5 DAZA	AWD, Sedan
2018	Audi	RS3 Base	2.5l L5 DAZA	AWD, Sedan
2019	Audi	RS3 Base	2.5l L5 DAZA	AWD, Sedan
2020	Audi	RS3 Base	2.5l L5 DAZA	AWD, Sedan
