KW Clubsport 3-way coilovers
The technology of the 24-hour race winner
Using the Nordschleife as it's testing grounds and the 7-post rig, KW developed it's 3-way Clubsport coilover kit. Wheel loads, vehicle weight and chassis reinforcements (for increased body stiffness) can all be taken into consideration with adjustment capabilities of the 3-way Clubsport. Similar to KW Competition 3-way coilovers, low-speed and high-speed compression adjustment is done via KW's patented two-valve control on the reservoir.
By hand, you can tune the low-speed compression damping with six precise clicks on the purple adjustment dial. The gold adjustment dial allows the user to change the high-speed compression damping with 14 precise clicks. Rebound adjustment is provided with 16 clicks, each providing a noticeable change. A reduction in rebound forces provides a more comfortable ride quality suitable for highway driving.
- 16 precise clicks in rebound adjustment dampening
- Adjustable compression damping with 6 clicks in low-speed range and 14 precise clicks in the high-speed range
- Continuous lowering
- TÜV-tested adjustment range
- High-quality components for long-term durability
- Independent damping force adjustability with aluminum spherical bearing top mounts available
Cutting-edge motorsports technology for more performance on the road. With independently adjustable compression and rebound damping the Variant 3 damper setup can be tuned to your own driving preferences or vehicle modifications such as weight, tire characteristics or additional chassis bracing. True performance optimization is only possible with this unique, patented system. For example, the compression damping force can be increased to optimize grip from the tires, or improve cornering behavior and reduce squat without influencing the rebound damping characteristics that are optimally tuned to the spring rate.
Specifically Engineered Setup – Vehicle specific with separately adjustable rebound and compression damping
The KW Variant 3 "inox-line" coilover kit is the ideal tool for performance-oriented drivers and experienced tuning enthusiasts who place a strong emphasis on the overall performance of their suspension. The Variant 3 features patented TVR-A and TVC-A technology that provides separately adjustable rebound and compression damping. The extensive adjustment range of the independently configurable rebound and compression make it easy to directly influence the steering behavior, directional stability, grip and handling characteristics for confident and repeatable results at the limit of driving dynamics.
The two-stage, patented TVR-A (Twin Valve Rebound - Adjustable) technology enables a small volume of oil to flow through an adjustable, conically shaped, low-speed bypass during low damper speeds, while in the case of higher damper speeds, the main rebound stage valve opens allowing a larger volumn of oil to flow. This provides a big improvement in terms of ride comfort without influencing the safety-relevant high-speed range. There are 16 precise clicks available for individual settings, so you can choose between more comfort or more body control.
With 12 precise clicks, the KW Variant 3 coilovers utilize TVC-A (Twin Valve Compression - Adjustable) technology and can increase or decrease the flow of valve to achieve either more or less low speed compression damping. During sudden high speed impulses the spring loaded needle valve and the spring loaded main valve open to their maximum valve cross section, acting as a digressive blow-off characteristic to avoid transmitting undesired forces through the suspension into the chassis. This provides a better platform for the vehicle body and at the same time offers more comfort than with conventional valve technology during high wheel acceleration. The dampers come preset to our baseline shock settings right out of the box providing an optimal starting place for your car while providing a wide adjustment window for true performance optimization.
Continuous Ride Height Adjustment
With KW Variant 3 coilovers you can achieve maximum lowering within an approved lowering range that ensures a proper functioning suspension with adequate travel after your car is lowered. Even after years of use you can easily adjust the ride height thanks to the dirt resistant trapezoid thread and composite adjustment collar.

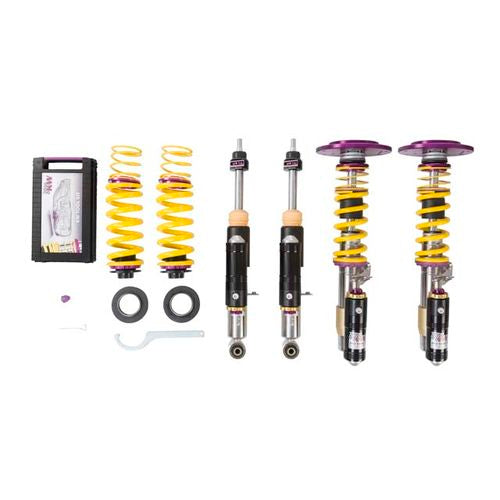

KW Clubsport 3 Way Coilover Kit - BMW M3 F80 Sedan, M4 F82 Coupe (does not include EDC cancellation) (For vehicles built Jan. 2015 and after with (5) bolt front top mount)
