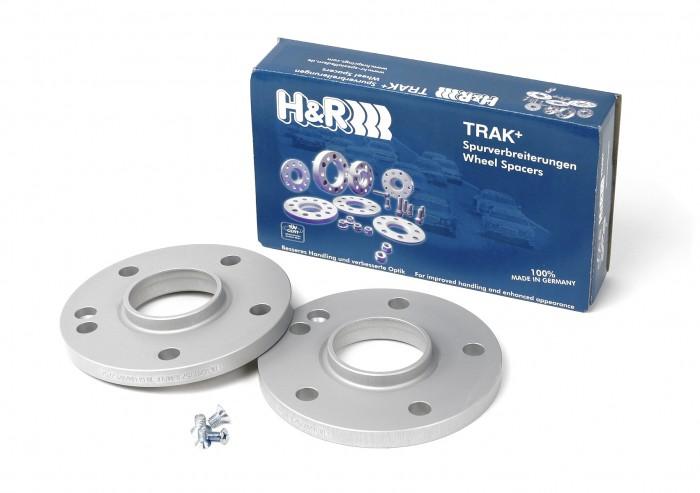

H&R Trak+ 18mm DR Spacer Bolt Pattern 5/112 CB 66.5mm Bolt Thread 14x1.5
Description:
All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60 End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2014 | Audi | A4 | Base |
| 2009 | Audi | A4 | Cabriolet |
| 2015-2016 | Audi | A4 | Premium |
| 2015-2020 | Audi | A4 | Premium Plus |
| 2015,2017-2020 | Audi | A4 | Prestige |
| 2017-2025 | Audi | A4 allroad | Premium |
| 2017-2025 | Audi | A4 allroad | Premium Plus |
| 2017-2025 | Audi | A4 allroad | Prestige |
| 2009-2012 | Audi | A4 Quattro | Avant |
| 2017-2025 | Audi | A4 Quattro | Premium |
| 2017-2025 | Audi | A4 Quattro | Premium Plus |
| 2017-2025 | Audi | A4 Quattro | Prestige |
| 2010-2014 | Audi | A5 | Cabriolet |
| 2008-2014 | Audi | A5 Quattro | Base |
| 2010-2014 | Audi | A5 Quattro | Cabriolet |
| 2015-2016,2018-2024 | Audi | A5 Quattro | Premium |
| 2015-2016,2018-2024 | Audi | A5 Quattro | Premium Plus |
| 2015,2018-2024 | Audi | A5 Quattro | Prestige |
| 2017 | Audi | A5 Quattro | Sport |
| 2018-2025 | Audi | A5 Sportback | Premium |
| 2018-2025 | Audi | A5 Sportback | Premium Plus |
| 2018-2024 | Audi | A5 Sportback | Prestige |
| 2012-2018 | Audi | A6 | Premium |
| 2012-2018 | Audi | A6 | Premium Plus |
| 2018 | Audi | A6 | Sport |
| 2020-2021 | Audi | A6 allroad | Premium Plus |
| 2020-2021 | Audi | A6 allroad | Prestige |
| 2013-2015,2017-2018 | Audi | A6 Quattro | Premium |
| 2013-2018 | Audi | A6 Quattro | Premium Plus |
| 2018 | Audi | A6 Quattro | Sport |
| 2013-2015 | Audi | A8 Quattro | Base |
| 2013-2024 | Audi | A8 Quattro | L |
| 2020-2021 | Audi | A8 Quattro | L Plug-In Hybrid |
| 2014-2016 | Audi | A8 Quattro | L TDI |
| 2012-2016 | Audi | A8 Quattro | L W12 |
| 2022-2023 | Audi | e-tron Quattro | Chronos Edition |
| 2021-2023 | Audi | e-tron Quattro | Premium |
| 2019,2021-2023 | Audi | e-tron Quattro | Premium Plus |
| 2019,2021 | Audi | e-tron Quattro | Prestige |
| 2022-2023 | Audi | e-tron S | Premium Plus |
| 2022-2023 | Audi | e-tron S | Prestige |
| 2022-2023 | Audi | e-tron S Sportback | Premium Plus |
| 2022-2023 | Audi | e-tron S Sportback | Prestige |
| 2018-2025 | Audi | Q5 | Premium |
| 2018-2025 | Audi | Q5 | Premium Plus |
| 2018-2025 | Audi | Q5 | Prestige |
| 2021-2024 | Audi | Q5 PHEV | Premium |
| 2021-2024 | Audi | Q5 PHEV | Premium Plus |
| 2021-2024 | Audi | Q5 PHEV | Prestige |
| 2017-2025 | Audi | Q7 | Premium |
| 2017-2025 | Audi | Q7 | Premium Plus |
| 2017-2025 | Audi | Q7 | Prestige |
| 2019-2023 | Audi | Q8 | Premium |
| 2019-2023 | Audi | Q8 | Premium Plus |
| 2019-2023 | Audi | Q8 | Prestige |
| 2024 | Audi | Q8 e-tron | Launch Edition |
| 2024 | Audi | Q8 e-tron | Premium |
| 2024 | Audi | Q8 e-tron | Premium Plus |
| 2024 | Audi | Q8 e-tron | Prestige |
| 2018-2019,2021-2024 | Audi | RS5 | Base |
| 2021-2025 | Audi | RS5 Sportback | Base |
| 2014-2018 | Audi | RS7 | Base |
| 2016-2018 | Audi | RS7 | Performance |
| 2010-2013 | Audi | S4 | Base |
| 2009 | Audi | S4 | Cabriolet |
| 2019-2024 | Audi | S4 | Premium |
| 2014-2016 | Audi | S4 | Premium Plus |
| 2014-2016 | Audi | S4 | Prestige |
| 2008-2013,2017 | Audi | S5 | Base |
| 2010-2013 | Audi | S5 | Cabriolet |
| 2019-2024 | Audi | S5 | Premium |
| 2014-2016,2018-2024 | Audi | S5 | Premium Plus |
| 2014-2016,2018-2024 | Audi | S5 | Prestige |
| 2018-2024 | Audi | S5 Sportback | Premium Plus |
| 2018-2024 | Audi | S5 Sportback | Prestige |
| 2013-2015 | Audi | S6 | Base |
| 2023-2025 | Audi | S6 | Premium |
| 2016-2018,2020-2025 | Audi | S6 | Premium Plus |
| 2016-2018,2020-2025 | Audi | S6 | Prestige |
| 2013-2016 | Audi | S7 | Base |
| 2017-2018 | Audi | S7 | Premium Plus |
| 2017-2018 | Audi | S7 | Prestige |
| 2018-2025 | Audi | SQ5 | Premium Plus |
| 2018-2025 | Audi | SQ5 | Prestige |
| 2020-2021 | Audi | SQ8 | Premium Plus |
| 2020-2021 | Audi | SQ8 | Prestige |
| 2016-2022 | Mercedes-Benz | GLC300 | 4Matic |
| 2016-2022 | Mercedes-Benz | GLC300 | Base |
| 2017-2022 | Mercedes-Benz | GLC43 AMG | 4Matic |
| 2017-2018,2020-2025 | Porsche | Macan | GTS |
| 2015-2021 | Porsche | Macan | S |
