Description:

As horsepower numbers rise, so do temperatures through the GR Supra’s intercooling system. In order to cool down that hot intake charge air coming from the turbocharger, you need a highly efficient heat exchange process which is where the AMS Performance 2020+ Toyota GR Supra Intake Manifold comes in. With our unique parallel twin core design, we are able to route coolant flow in the most efficient way possible giving us unparalleled cooling efficiency over the competition. The AMS Performance 2020+ Toyota GR Supra Intake Manifold also provides for an auxiliary port fuel injection solution by way of its flush mounted -8AN fuel rail, giving the atomized fuel a nearly unimpeded path to the combustion chamber. Our superior engineering yields superior results.

• 1250+ HP RATED PARALLEL AIR-TO-WATER INTERCOOLER CORES FOR SUPERIOR COOLING

• AUXILIARY PORT FUEL RAIL WITH -8AN SIDE PORTS FOR EXPANDED FUELING OPTIONS

• COMPUTATIONAL FLUID DYNAMICS (CFD) VERIFIED DESIGN FOR EVEN AIRFLOW DISTRIBUTION

• PROPERLY ANGLED PORT INJECTION FOR IMPROVED FUEL ATOMIZATION

• 135% LARGER CORE AREA COMPARED TO OEM

• COMPATIBLE WITH AMS 3″ AND OTHER OEM-STYLE CHARGE PIPES

• 1″ INNER DIAMETER COOLANT HOSES PROVIDE 148% SIZE INCREASE OVER OEM

• COOLANT PORT DESIGN ALLOWS FOR CUSTOM ICE TANK IMPLEMENTATION

• THREE (3) EXTRA -4AN ORB PORTS LOCATED ON PLENUM FOR VACUUM SOURCE POINTS

• INCLUDES ALL ANCILLARY COMPONENTS, INCLUDING ALL HARDWARE, LINES, AND FITTINGS

ENGINEERED TO WIN

The AMS Snailworks© Engineering Team has designed the AMS Performance 2020+ Toyota GR Supra Intake Manifold to be a direct bolt-in install without hacking up your prized possession. The manifold is fully compatible with A/C, power steering, oil filter cap, and all other factory options, and is easily reversible back to stock with a few inexpensive replacement parts. The design of the new AMS Performance 2020+ Toyota GR Supra Intake Manifold positions it to be the best performing, highest quality, and easiest to install manifold on the market.

Our AMS Snailworks© Engineering Team has spent hundreds of R&D hours refining the AMS Performance 2020+ Toyota GR Supra Intake Manifold to be as efficient and effective as possible. Utilizing Computation Fluid Dynamics (CFD) analysis software, our team has been able to verify the geometry of our A356 T6 cast aluminum plenum and runners to optimize mass flow rate distribution to each cylinder. By taking this additional design step, our engineers have gone the extra mile and allowed for an equalization of airflow to within .5% to each individual cylinder port!

PROPERLY IMPLEMENTED PORT FUEL INJECTION

The 3.0L B58 engine found in the GR Supra is a BMW-sourced German engineering marvel. Unfortunately, the factory direct injection system is not conducive to making high horsepower or using ethanol flex fuel, which has led many owners to install port fuel injector spacers sandwiched between the cylinder head and factory intake manifold. During the R&D process of the AMS Performance 2020+ Toyota GR Supra Intake Manifold, our team knew they wanted to incorporate an optimally designed secondary port fuel injection solution as an option for customers.

By moving the injector ports onto the manifold runners themselves, we are able to properly angle injector nozzles directly at the intake valve and combustion chamber instead of at the wall of the intake runners where fuel can puddle. Our team went one step further with this concept by flush mounting the -8AN fuel rail to the manifold and pocketing the runners to allow the injectors to have an even more direct path to spray perfectly atomized fuel to the engine for maximum combustion efficiency.

PARALLEL SPLIT CORE DESIGN FOR OPTIMIZED COOLANT FLOW

The most significant design element of the AMS Performance 2020+ Toyota GR Supra Intake Manifold is our parallel split core design that allows us to route coolant from the middle of the unit instead of from one end to the other. This coolant flow routing reduces water pressure drop and increases flow rate at a given head pressure, meaning coolant can easily move through the system and expel heat efficiently. This split coolant flow design delivers consistently cool water to every cylinder by matching the coolest water (fresh from the heat exchanger), with the coolest air (furthest point through the intercooler), to maximize heat transfer across the length of the cores.

The 1250+ HP rated twin cores themselves have also been optimized for not just coolant flow, but for airflow throughput as well as reduced pressure drop. The AMS Snailworks© Engineering Team has struck a fine balance between airflow to the engine, and allowing the heat exchange process to cool that air. This is done by optimizing the dimensions of our proprietary parallel cores to allow for intercooler design elements like our custom spec fin densities on both coolant and air sides, fin height, and water passage size.

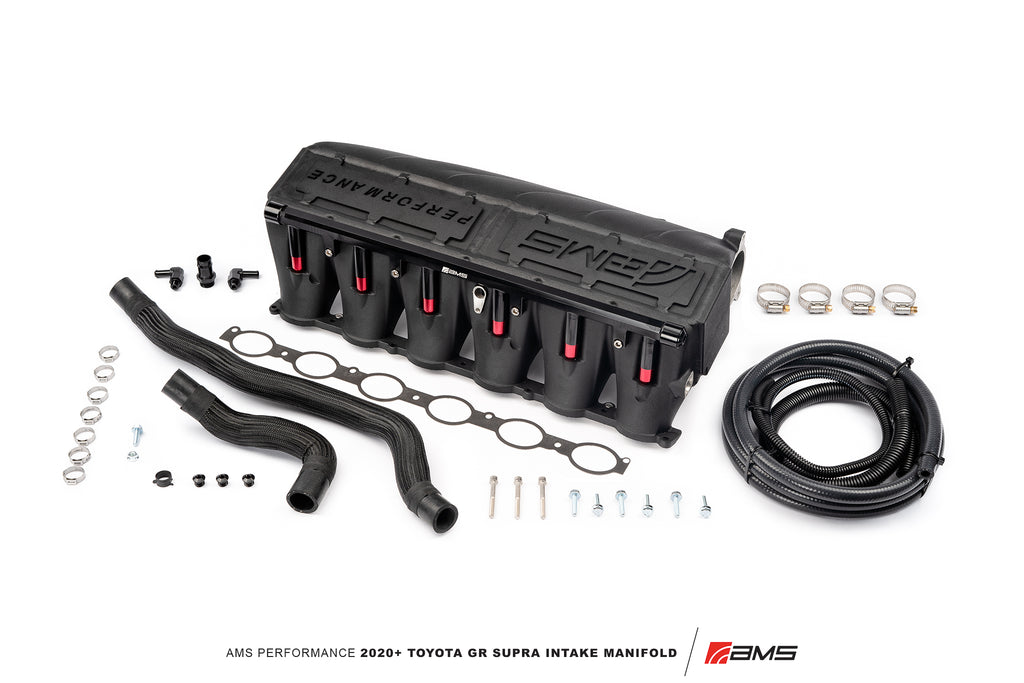

INCLUDES

CARB AND / OR EPA COMPLIANCE TESTING ON GOING

While we believe this product is either CARB EO exemption applicable, or complies with the EPA's Anti-Tampering Policy, we have not completed the required testing and administrative process at this time. This product is not available for sale on emissions-controlled vehicles within California without a completed AMS Race Waiver form. International users outside of the United States should act in accordance with their local laws and regulations.

AMS Performance 2020+ Toyota GR Supra Intake Manifold

Special order product(s), please allow an additional 10-15 days delivery. For more detailed information please contact HKP Tuning
