Description:

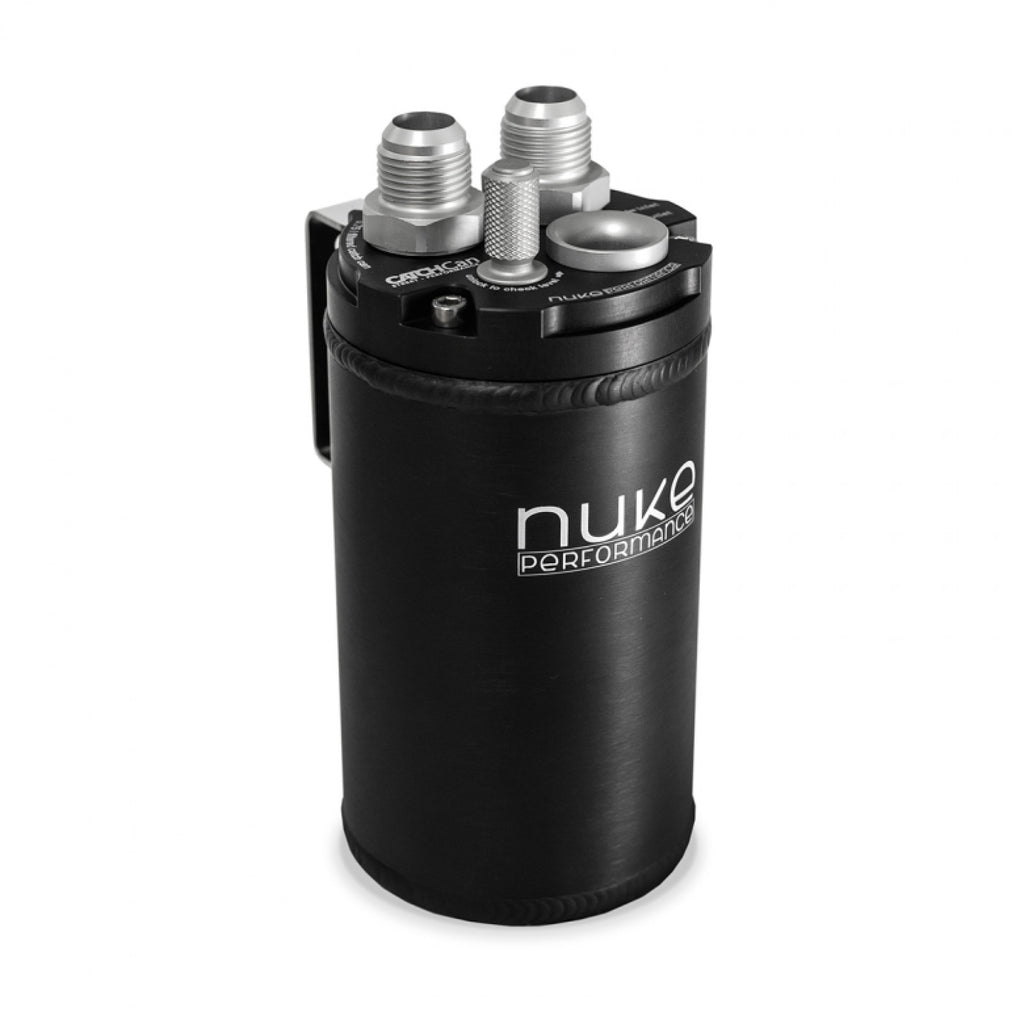

Nuke Performance universal 0,75 liter Oil Catch Can with stainless steel internal baffling and 300-micron filtered outlet.

Universal dual inlet Oil Catch Can with internal baffling and with a unique 300 micron filtered outlet port. Dual AN-10 inlet with AN-10 male fittings included. Dual filtration breather for competition, motorsports and tuning usage for any kind of vehicle that is in need of a crankcase gas catch can. Everything is included for single or dual inlet and atmospheric and recirculating setup.

 Dual AN-10 inlets, choose between single and dual
 Anodized dip stick for easy reading of level
 Recirculating / Atmospheric setup, all fittings included
 Made in Sweden
 300-micron filter and stainless steel internal baffling
 1/4 G drainage outlet for fast and easy drainage

Atmospheric and recirculating installation :
Everything is included for both setups. We really mean it, you do not have to make any choices - this is exactly what you need and it comes with outlet fittings for both atmospheric and recirculating usage. And our unique outlet port needs no external filter when going atmospheric thanks to its integrated 300-micron filter disc.

World-class dual filtration with a maximized functionality :
This unique dual internal filtration system prevents particles from escaping the breather with the 300-micron filter disc used both when using the catch can for atmospheric or recirculating installation. The dual filtration system makes sure to filter your crankcase gasses, gives you outstanding filtration which saves your engine in the short and long run.

Anodized dip stick for easy reading of internal level
It comes with an easily accessible dipstick for fast and easy reading of the internal level, it should be easy and functional and fast to check the level between laps on the race track or when checking your levels before hitting the track or streets and this is as easy as it gets. Drainage is made easy with the optional peacock valve that connects to the 1/4 drainage thread at the bottom. Delivered with AN-10 fittings with Viton o-rings. AN-8 and AN-12 fittings are optional.
AN-8 Partno: 700-01-116
AN-12 Partno: 700-01-113

Drainage made easy with the optional drainage kit
Drainage is made easy with the optional peacock valve that connects to the 1/4 drainage thread at the bottom. It comes with a 1/4" peacock valve that fits straight into the bottom of the catch can. Route the included 2 m / 6 ft hose to an easy-access location, for example, the wheelhouse. It makes it easy to drain/collect the residual products without having to disassemble the Catch Can from the vehicle.
Partno: 265-10-101

Made in Sweden, guaranteeing the highest possible quality
Developed, designed, and manufactured in Sweden, inhouse by Nuke Performance. This is of the highest possible quality and with the same hallmark as all the other range of lightweight motorsports range from Nuke Performance.
This guaranteeing the highest possible quality - there is no substitute for the quality of Nuke Performance.

Technical information :
• CNC macufactured from aluminium alloy 6082.
• Delivered with three AN-10 fittings, one AN-10 plug, one outlet fitting for atmospheric use and 1/4 drainage plug.
• Anodized finish for long lasting function and corrosion free appearance.
• 300 micron stainless steel cleanable / replaceable filter disc and stainless steel internal baffling.
• Laserengraved.

Measurements :
Height : 162 mm
Width : 90 mm
Depth : 106,4 mm
Weight : 1000 g
* All measurements excluding the supplied or optional fittings.
