Description:

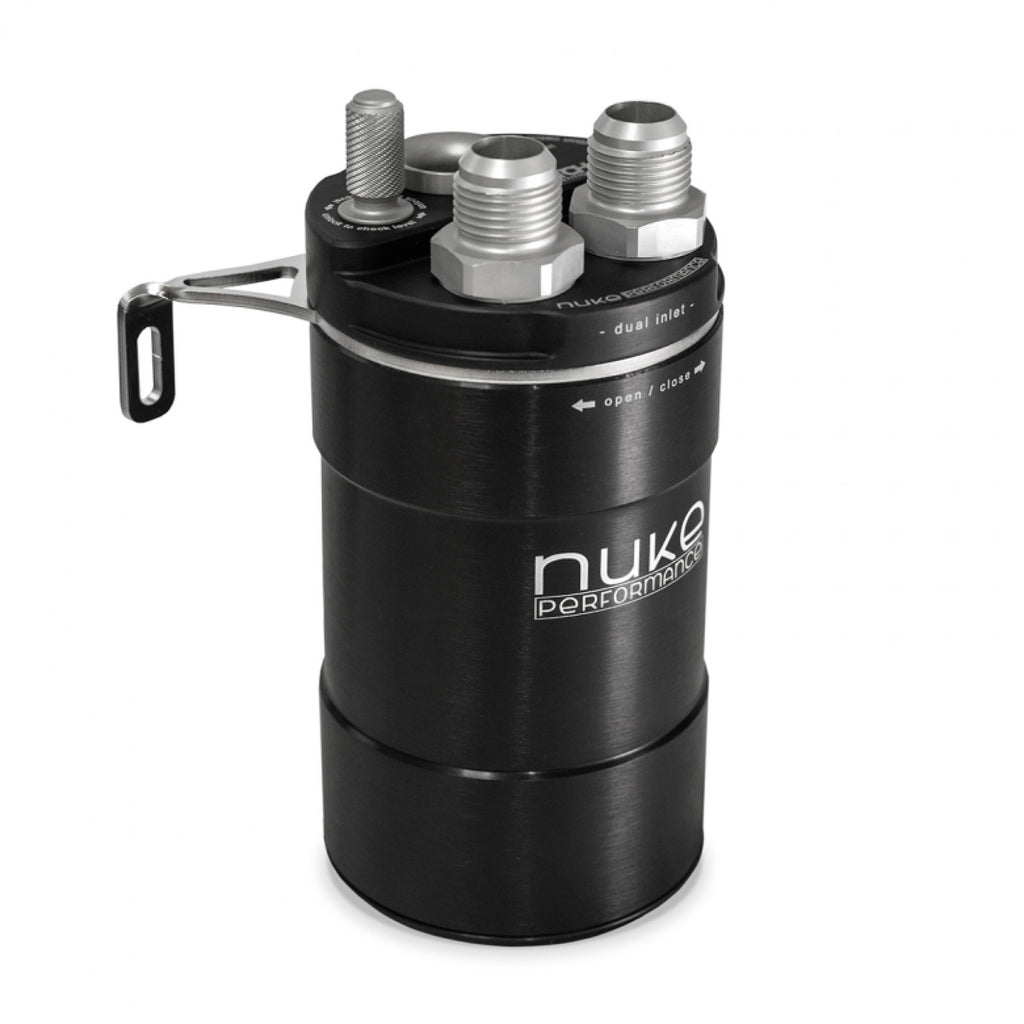

Nuke Performance universal dual inlet Oil Catch Can. Available in 0,5 liter and 1,0 liter version, both with the unique dual filtration.

Universal Dual inlet Catch Can with the unique dual filtration design. Dual AN-10 inlet with AN-10 male fittings included. Dual filtration breather for competition and motorsports usage as well as for street and tuning usage. Everything is included for single or dual inlet and atmospheric or recirculating setup

 Dual AN-10 inlets, choose between single or dual inlet
 Stainless Steel filtration media
 Made in Sweden
 300micron Stainless Steel filtered outlet
 Anodized dip stick for easy reading of internal level
 All fittings included for atmospheric and recirculating

 Internal Billet Filtration Unit - rigorous filtering
The unique Internal Billet Filtration Unit in combination with our 300-micron recessed filter disc gives you extremely rigorous filtering of your crankcase gasses.
The “IBFU” includes stainless steel filtration media that maximizes condensation of the contaminations within the gasses without any or minimum flow loss. The media is both replaceable and cleanable and is sold as spare if needed.

 300-micron filter disc, no need for external filters
Equipped with our unique 300-micron filter disc that prevents particles from escaping the catch can, filter disc is used both when atmospheric and recirculating setup is used. The Dual Inlet Competition Catch Can give you maximum filtration, with the 300mic filter disc with its own surge protection mounted to the outlet port making this the first Catch Can that can be used both for atmospheric and recirculating setup without adding an external filter on top.
All fittings included for both setups.

 Used both for atmospheric and recirculating setup
The over-dimensioned chamber without any additional baffling lets the gasses to flow free within the catch can. This in combination with the included outlet fittings that let you choose between atmospheric and recirculating setup without the need for an external filter. You do not have to choose between setups now - we include every fitting needed within the box. Delivered with AN-10 to AN-10 male fittings with alcoholic-fuel safe Viton o-rings. AN-8 and AN-12 fittings are optional.
AN-8 Partno: 700-01-116
AN-12 Partno: 700-01-113

 Developed with high demands from motorsports
The Competition Catch Can comes in two sizes, 0,5 liter and 1,0 liter (1,06 quart). The 1,0liter version exceeds the US motorsports regulation that demands 1quart of capacity. To be able to mount it with perfect fitment we include the stainless steel bracket, infinitely rotatable at 360 degrees. Our series of Oil Catch Cans are co-developed with worldwide motorsports teams, these catch cans are set to perform under all conditions and for any horsepower requirement.

 Optional peacock drainage kit available for fast drainage
Drainage is made easy with the optional peacock valve that connects to the 1/4 drainage thread at the bottom. It comes with a 1/4" peacock valve that fits straight into the bottom of the catch can. Route the included 2 m / 6 ft hose to an easy-access location, for example, the wheelhouse. It makes it easy to drain/collect the residual products without having to disassemble the Catch Can from the vehicle.
Partno: 265-10-101

 Made in Sweden, guaranteeing the highest possible quality
Developed, designed, and manufactured in Sweden, inhouse by Nuke Performance. This is of the highest possible quality and with the same hallmark as all the other range of lightweight motorsports range from Nuke Performance.
This guaranteeing the highest possible quality - there is no substitute for the quality of Nuke Performance.

• CNC manufactured from aluminum alloy 6082.
• Delivered with three AN-10 fittings, one AN-10 plug, one outlet fitting for atmospheric use and 1/4 drainage plug.
• Anodized finish for long lasting function and corrosion free appearance.
• 300 micron stainless steel cleanable filter disc and cleanable stainless steel filtration media.
• Meets dictated regulations including SCCA, NASA, Formula D.
• Laser engraved.

Measurements :
0,5 liter Catch Can
Height : 159,5 mm
Width : 89 mm
Depth : 108,5 mm
Weight : 1200 g

1,0 liter Catch Can
Height : 239,5 mm
Width : 89 mm
Depth : 108,5 mm
Weight : 1400 g
* All measurements excluding the supplied or optional fittings.
