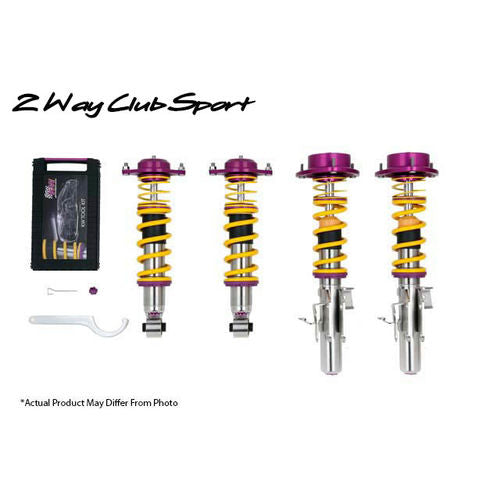

KW Clubsport: 2 Way
Coilovers for Race track and road.*
These set ups were specifically designed for the Nordschleife using track day tires. By using the optional adjustable top mounts, suspension geometry can be adjusted to the requirements of the tires and the intended use.
These adjustable top mounts coupled with the independently adjustable rebound and compression dampening technology individual set up adjustments according to vehicle load, tire characteristics and different track conditions. Clubsports meets all needs for the road and the race track guaranteeing excellent handling, best performance, great agility and fantastic lap times.
The rebound adjuster knob provides 16 precise clicks to personally dial in your desired vehicle setup. Thus allowing you the possibility to influence wheel/tire loads or take into concern chassis characteristics. Independent from rebound adjustment is the compression dampening, 12 precise adjustment clicks are provided to adjust the low-speed dampening. Most notably used to dial in wheel/tire setup.
These adjustment features allow the user to dial in vehicle weight, wheel/tire combinations, various road surfaces and environmental conditions.
- Independently adjustable rebound and compression damping technology
- Stainless steel technology "inox-line"
- Continuous lowering
- TÜV-tested adjustment range
- High-quality components for a long-term durability
- Adjustable rebound damping with 16 precise clicks
- Adjustable compression damping with 12 precise clicks
- Unique independent damping force adjustment
- Optional spherical bearing aluminum top mounts
Street-legal race track performance! KW Clubsport provides cutting-edge motorsports technology for those who enjoy unparalleled handling and performance on the road or track. Designed to maximize the performance on vehicles with DOT-R and other ultra high-performance tire setups. KW 2-Way Clubsports are the ideal choice for double-duty street cars, use at HPDE's(high performance drivers education), time attack or time trials, and club level racing.The Clubsport setup was specially designed on the Nordschleife and the continuous adjustable ride height allows for fine corner weight or making setup changes. The TVR-A and TVC-A valve technology provide an unmatched level of separately adjustable damping for the rebound and compression enabling a customized set up appropriate for the vehicle's modifications such as weight, tire characteristics, and other various conditions.
Specifically Engineered Setup – Vehicle specific with separately adjustable rebound and compression damping
The KW 2-Way Clubsport "inox-line" coilover kit is the ideal tool for performance-oriented drivers and experienced tuning enthusiasts who place a strong emphasis on the overall performance of their suspension. The KW 2-Way Clubsport features patented TVR-A and TVC-A technology that provides separately adjustable rebound and compression damping. The extensive adjustment range of the independently configurable rebound and compression make it easy to directly influence the steering behavior, directional stability, grip and handling characteristics for confident and repeatable results at the limit of driving dynamics.
The two-stage, patented TVR-A (Twin Valve Rebound - Adjustable) technology enables a small volume of oil to flow through an adjustable, conically shaped, low-speed bypass during low damper speeds, while in the case of higher damper speeds, the main rebound stage valve opens allowing a larger volumn of oil to flow. This provides a big improvement in terms of ride comfort without influencing the safety-relevant high-speed range. There are 16 precise clicks available for individual settings, so you can choose between more comfort or more body control.
With 12 precise clicks, the KW 2-Way Clubsport coilovers utilize TVC-A (Twin Valve Compression - Adjustable) technology and can increase or decrease the flow of valve to achieve either more or less low speed compression damping. During sudden high speed impulses the spring loaded needle valve and the spring loaded main valve open to their maximum valve cross section, acting as a digressive blow-off characteristic to avoid transmitting undesired forces through the suspension into the chassis. This provides a better platform for the vehicle body and at the same time offers more comfort than with conventional valve technology during high wheel acceleration. The dampers come preset to our baseline shock settings right out of the box providing an optimal starting place for your car while providing a wide adjustment window for true performance optimization.
Continuous Ride Height Adjustment
With KW Clubsport coilovers you can achieve maximum lowering within an approved lowering range that ensures a proper functioning suspension with adequate travel after your car is lowered. Even after years of use you can easily adjust the ride height thanks to the dirt resistant trapezoid thread and composite adjustment collar.
The Benchmark for Coilovers
As with all KW coilovers our engineers develop vehicle specific damper and spring specifications which undergo comprehensive testing on the Nürburgring Nordschleife and in our KW 7-post Driving Dynamic Test Center. With a KW Clubsport coilover kit the driving experience is more dynamic and direct.
You are not buying a mass produced, generic coilover kit, a KW coilover has been developed specifically for your particular vehicle. As a manufacturer, KW uses only its own resources, high quality components and the damper technology that has all developed in-house. With the KW Clubsport coilovers, rolling motion of the body will be reduced during compression giving you the benefit of more direct handling and confidence while driving.
Our experience means your driving pleasure
For over 20 years, KW automotive has been the market leader and driving innovation as a manufacturer of individual suspension solutions for the road and in all types of motorsports. No matter where in the world, gearheads, automobile manufacturers and reputable tuners rely on our KW coilovers "Made in Germany".
Every KW coilover kit undergoes extensive stress testing before production and is developed and manufactured exclusively in our company headquarters in Fichtenberg, a small in town in Germany, to meet the high standards of our KW quality management. For us as a German manufacturer, it goes without saying that our KW coilover kits will exceed the original equipment manufacturer quality, and offer useful and innovative solutions. With an application list comprising more than 4,600 options KW guarantees an outstanding selection backed by our Limited Lifetime Warranty.
|2014-2015||Mercedes-Benz||C63 AMG||Edition 507|
